AC1 - Enduro

from CA$8,650.00

Enduro AC1 – Built to Push Hard

The Enduro AC1 is designed for riders who charge into steep, technical terrain but still want to pedal back up. Aggressive geometry meets custom fit for the ultimate all-round big mountain bike.

  • 170mm rear travel for enduro riding, bikepark, and shuttle laps

  • MX 29”/27.5” wheel setup standard, with full 29" wheels available

  • Custom fit + Canadian built

Lock in your spot with a 50% deposit. After a consultation, we’ll dial in your setup and start building.

Gearbox:
Shock:
Fork:
Wheelset:

Enduro AC1 – Built to Push Hard

The Enduro AC1 is designed for riders who charge into steep, technical terrain but still want to pedal back up. Aggressive geometry meets custom fit for the ultimate all-round big mountain bike.

  • 170mm rear travel for enduro riding, bikepark, and shuttle laps

  • MX 29”/27.5” wheel setup standard, with full 29" wheels available

  • Custom fit + Canadian built

Lock in your spot with a 50% deposit. After a consultation, we’ll dial in your setup and start building.

AC1 Belt Drive Conversion Kit
AC1 Belt Drive Conversion Kit
CA$750.00
Gates CDX Spare Belt Gates CDX Spare Belt Gates CDX Spare Belt
Gates CDX Spare Belt
CA$150.00
Size:

Enduro AC1 – More Details

The Enduro AC1 is built for aggressive riders who want one bike to handle big climbs and even bigger descents. Frames are custom-tailored to each rider’s fit.

  • Wheel setup: Full 29" or MX (29” front, 27.5” rear) wheels.

  • Travel options: 170mm rear, 170-180mm front

  • Drivetrain: Compatible with gearbox only, and chain or belt drive systems for minimal maintenance and maximum durability

  • Customization: Full geometry and components are discussed in consultation — fully personalized, but always performance-driven

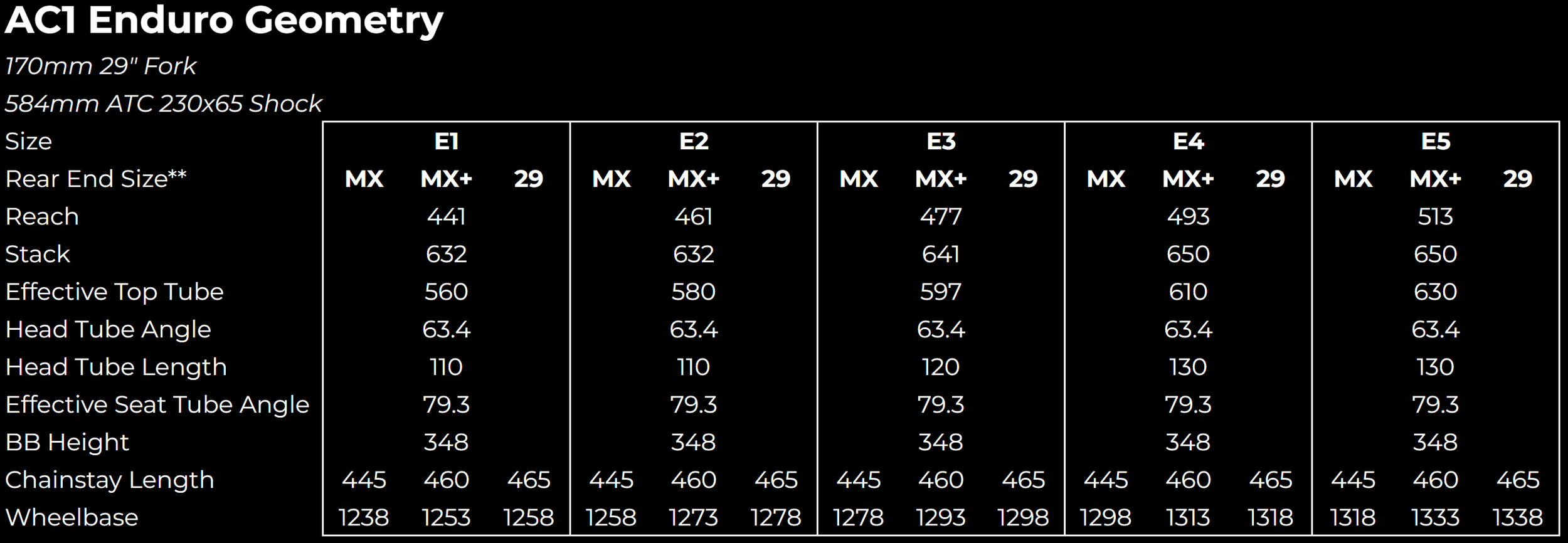

  • Basic Geometry: This is the typical range that we work within, the final numbers will be based on your consultation and parts spec

    • Reach: 430-530mm in 5mm increments

    • Headtube: 105-130mm long, 62-64 degrees

    • Chainstays: 460mm for 29”, 445 or 455mm for 27.5”

    • Seattube: 79-81 degrees

  • Lead time: Typically 10–16 weeks, with improvements reducing wait times over time

Enduro AC1 – Tech Specs

  • Shock size: 230x65mm

  • Headset: ZS44 upper / IS52 lower, frames ship with silver Cane Creek Hellbender 70 headsets, complete bikes include Title cockpit

  • Rear wheel spacing: 148x12mm spacing, 12x1.5mm axle included

  • Seatpost size: 30.9mm, clamp included and completes ship with Oneup dropper post

  • Brake Mount: IS rear brake mount, all bikes come with NSB 203mm post mount adapter and completes use Hayes Dominion A4 Brakes
