AC1 Frame Kit

from CA$5,000.00

Already have a dream build in mind? The AC1 Frame Kit gives you the same custom-tailored frame we use for complete builds — ready for you to build with your own parts.

  • Tailored sizing for your fit and riding style

  • Choose Trail, Enduro, or Downhill geometry

  • Hand-built in Canada

Every frame kit comes with a consultation to dial in your fit and setup.

Gearbox:
Shock:

Already have a dream build in mind? The AC1 Frame Kit gives you the same custom-tailored frame we use for complete builds — ready for you to build with your own parts.

  • Tailored sizing for your fit and riding style

  • Choose Trail, Enduro, or Downhill geometry

  • Hand-built in Canada

Every frame kit comes with a consultation to dial in your fit and setup.

AC1 Belt Drive Conversion Kit
AC1 Belt Drive Conversion Kit
CA$750.00
Gates CDX Spare Belt Gates CDX Spare Belt Gates CDX Spare Belt
Gates CDX Spare Belt
CA$150.00
Size:
North Shore Billet Talon Cranks North Shore Billet Talon Cranks North Shore Billet Talon Cranks
North Shore Billet Talon Cranks
CA$450.00
Color:

AC1 Frame Kit – More Details

For riders who want to take on the build themselves, the AC1 Frame Kit gives you the same custom-tailored frame as our complete builds.

  • Frame tailoring: Each frame is built to your size and riding style

  • All three travel categories available: Trail (160mm), Enduro (170mm), or Downhill (200mm) platforms

  • Wheel setups: Full 29" or MX (29” front, 27.5” rear) wheels

  • Bearings & pivots: Enduro bearings in all pivots, IGUS bushings in seat stay pivots

  • Includes: Shock hardware, seat clamp, axle, Cane Creek Hellbender 70 headset, NSB brake mount adapter, and consultation to finalize geometry

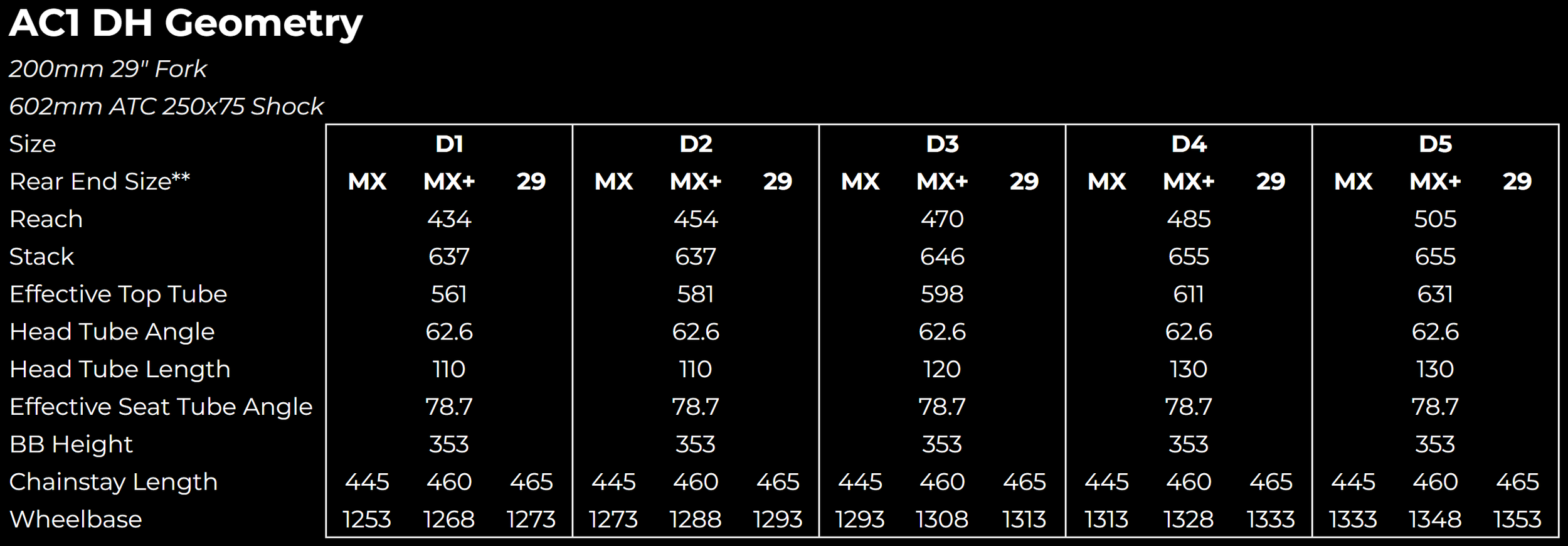

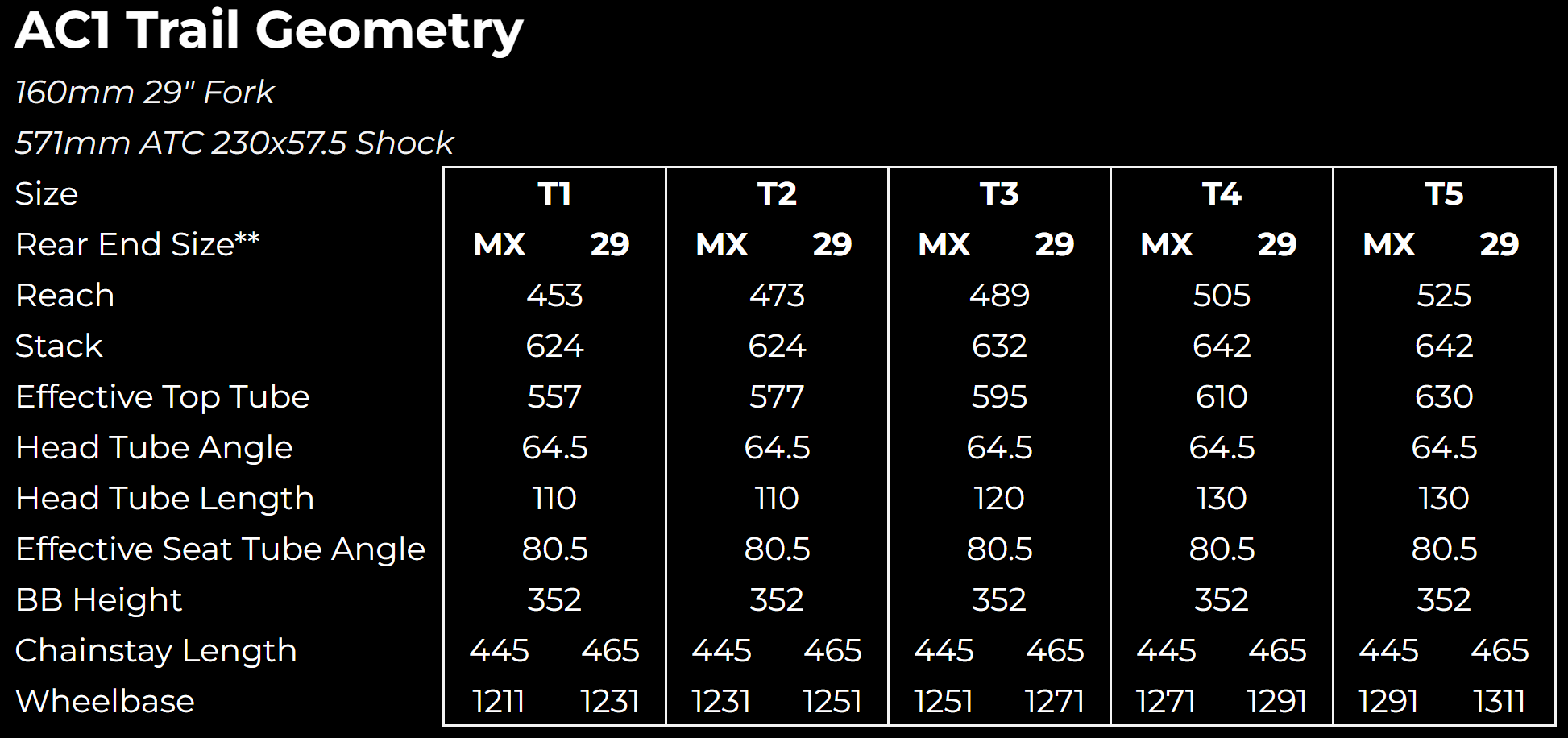

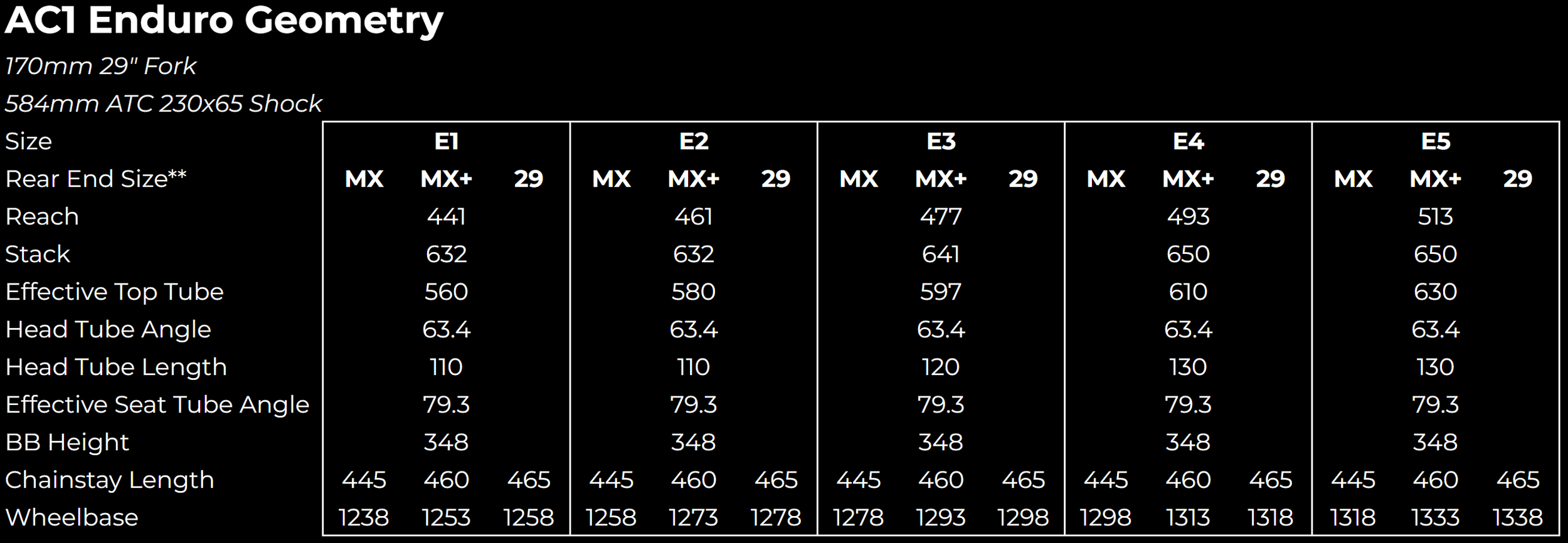

  • Starting Geometry: The typical range that we work within, final numbers will be based on your consultation and parts spec

    • Reach: 430-530mm in 5mm increments

    • Headtube: 105-130mm long, 62-65 degrees

    • Chainstays: 460mm for 29”, 445 or 455mm for 27.5”

    • Seattube: 79-81 degrees

  • Lead time: Usually 10–16 weeks, consistently improving as we grow

AC1 Frame Kit – Tech Specs

  • Shock size: 230x57.5mm for 160mm travel, 230x65mm for 170mm travel, 250x75mm for 200mm travel

  • Headset: ZS44 upper / IS52 lower, frames ship with silver Cane Creek Hellbender 70 headsets

  • Rear wheel spacing: 148x12mm spacing, 12x1.5mm axle included

  • Seatpost size: 30.9mm, clamp included
